Isodiametric tractors, monodirectional or reversible, with central articulation. 49 HP

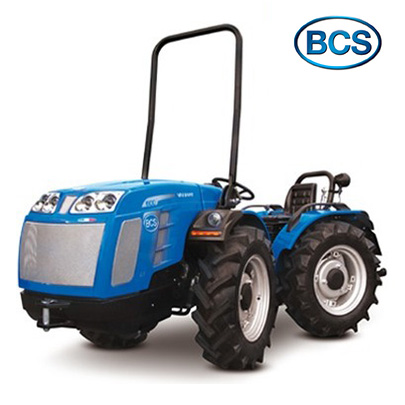

The Valiant 600 AR are specialized tractors designed to be used in extremely tight spaces: row crops, vineyards, orchards, greenhouses and nursery gardens.
The Valiant 600 AR are specialized tractors designed to be used in extremely tight spaces: row crops, vineyards, orchards, greenhouses and nursery gardens.
Thanks to the isodiametric wheels and steering with hydrostatic drive acting on the central articulation, the best qualities of the Valiant 600 AR is its agility and manoeuvrability.
The reversible driving position (optional) allows to operate practically and rationally both with towed and front attachments.
The Valiant 600 are mounting a 4-cylinder Kohler engine with direct injection and counter-rotating mass developing 49 HP.
Prijenos
The transmission of Valiant 600 is fitted with the OS-FRAME chassis.
The structure with cantilevered engine allows for a very low centre of gravity without sacrificing ground clearance.
The joint in the middle of the machine lets the front axle oscillate up to 15° with respect to the rear axle, for excellent stability on slopes.
The 24-speed synchronised gearbox (12 FWD + 12 REV) with synchronized reverser allows for optimal use of the Valiant 600, fuel economy and a better quality of work.
The 'Long Life' clutch is multidisc in oil bath and requires no maintenance.
The Valiant 600 are equipped with planetary gear axles to minimize wheelbase of the tractor and increase its manoeuvrability.
The machine has a permanent 4-wheel drive.
Hidraulika
Sigurnost
Upravljačka pozicija
Model | Power KW/HP | Nominal speed (rpm) | No. of cylinders | Displacement (cm3) | Aspiration | Maximum torque (Nm/rpm) |
Valiant 600 | 36 / 49 | 2600 | 4 | 2482 | Natural | 170 / 1500 |
