Traktorska kosilica prednja

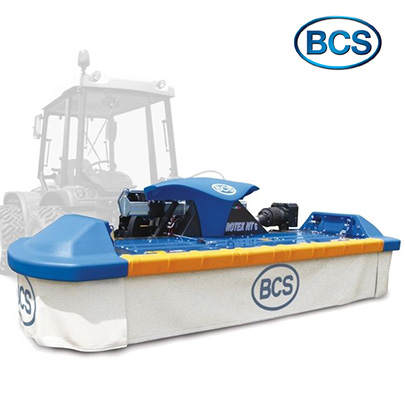

BCS Rotex 5 | 6 | 7 Avant NT
Front-mounted mower
The Rotex Avant NT are front-mounted mowers with limited weight and dimensions for use on both traditional and isodiametric tractors as well as on special tractors configured for mowing mountain pasture grass.
The minimal power absorption from the PTO makes the Rotex Avant NT suitable also for use on low powered tractors, in the mountain and on slopes.
Three different versions of the Rotex Avant NT are available, depending on the cutting width:
- Rotex 5 Avant NT with 5 discs and a 2.05 m cutting width
- Rotex 6 Avant NT with 6 discs and a 2.45 m cutting width
- Rotex 7 Avant NT with 7 discs and a 2.85 m cutting width
The compact and light-weight load-bearing frame drastically reduces the overhand of the mower with respect to the tractor, optimising weight distribution and making the use in "combination" with rear-mounted mowers more stable.
It is recommended to install Rotex Avant NT on tractor having azote-operated hydraulic suspension, to keep the cutterbar load on ground always regular and for a better adaption to the ground contour. As an alternative, a spring suspension kit is available (for standard tractors only).The main transmission boxes feature gears in oil bath and are designed to operate with tractors with PTO at 540 or 1,000 rpm. The control support, with the gears in an oil bath, is made from spheroidal cast iron to ensure maximum resistance to stress during operation and movement, and it is situated behind the first disc to reduce the overall dimensions and facilitate the passage of the mowed forage.
A free wheel and a clutch are also standard features to protect the transmission. This makes it possible to use a simple cardan joint to convey the motion from the tractor PTO to the machine.
Six types of frames with tractor linkage make the Rotex Avant NT compatible with all the tractors currently on the market.
A central articulated joint allows the machines to oscillate with respect to the coupling (± 5°), adapting to the morphology of the soils on which they are used. A pin makes it possible to lock it during road transfer.
Hidrauličko pomicanje
The hydraulic displacement (optional) allows the Rotex Avant NT machines to move transversally about 175 mm on both sides, with respect to the central axis of the third point coupling.
This allows improved load distribution and enhanced tractor/mower stability especially when operating on slopes.
It also becomes a practical accessory when operating in the presence of trees or on canal banks.
It also becomes a practical accessory when operating in the presence of trees or on canal banks.
Rezaće tijelo
Zaštitni okvir
