Traktor BCS

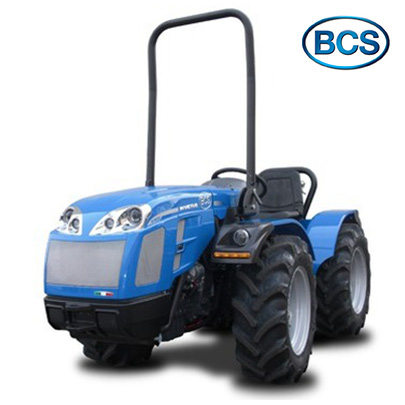

Invictus K300 / K400 RS

Isodiametric tractors, monodirectional, with steering wheels. 26 or 35.6 HPInvictus K300 | K400 RS are new design tractors produced to satisfy the requirements of hobby-farmers and small farms specialised in growing in greenhouses, nurseries, small rows of vines and poultry holdings.
Compactness, maneuverability and limited weight allow the  Invictus K300 | K400 RS to work in complete safety both on flat and uneven, sloping grounds.
The double ellipsoidal lights integrated in the bonnet give the tractor a particularly refined look.
Two Kubota engines are available for the Invictus: a 26 HP three cylinder engine (Invictus K300) and a 35.6 HP four cylinder engine (Invictus K400), both with indirect injection and natural aspiration.
Prijenos
The transmission of Invictus K300 | K400 is fitted with the OS-FRAME chassis. A joint in the middle of the machine lets the front axle oscillate up to 15° with respect to the rear axle, for excellent stability on slopes and maximum traction.

The gearbox with easy gear engagement has 8 forward and 4 reverse speeds, without speed overlapping.

The dry single disc clutch grants gentle and immediate gear connection.

The distribution of the weights on the axles, 40% on the rear and 60% on the front, is proved optimal once the rear lifting equipment is mounted. The rear load optimises the sharing of the weights on the two tractor axles to increase stability and safety.

The permanent 4-wheel drive allows exploiting the machine’s towing feature.
Hidraulika
Sigurnost
Upravljačka pozicija
Model Power KW/HP Nominal speed (rpm) No. of cylinders Displacement (cm3) Aspiration Maximum torque (Nm/rpm)
Invictus K300 19.1 / 26 3000 3 1123 Natural 70.4 / 2200
Invictus K400 26.2 / 35.6 3000 4 1498 Natural 96.5 / 2200
